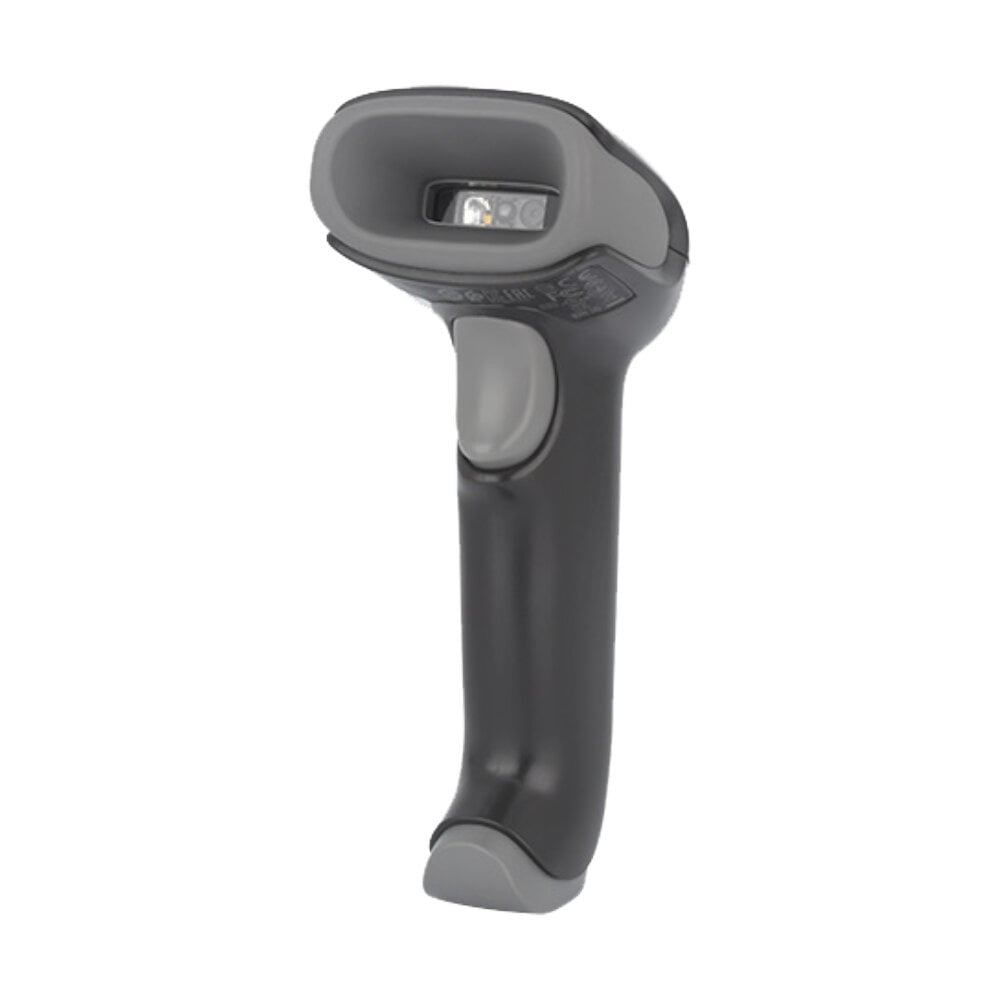

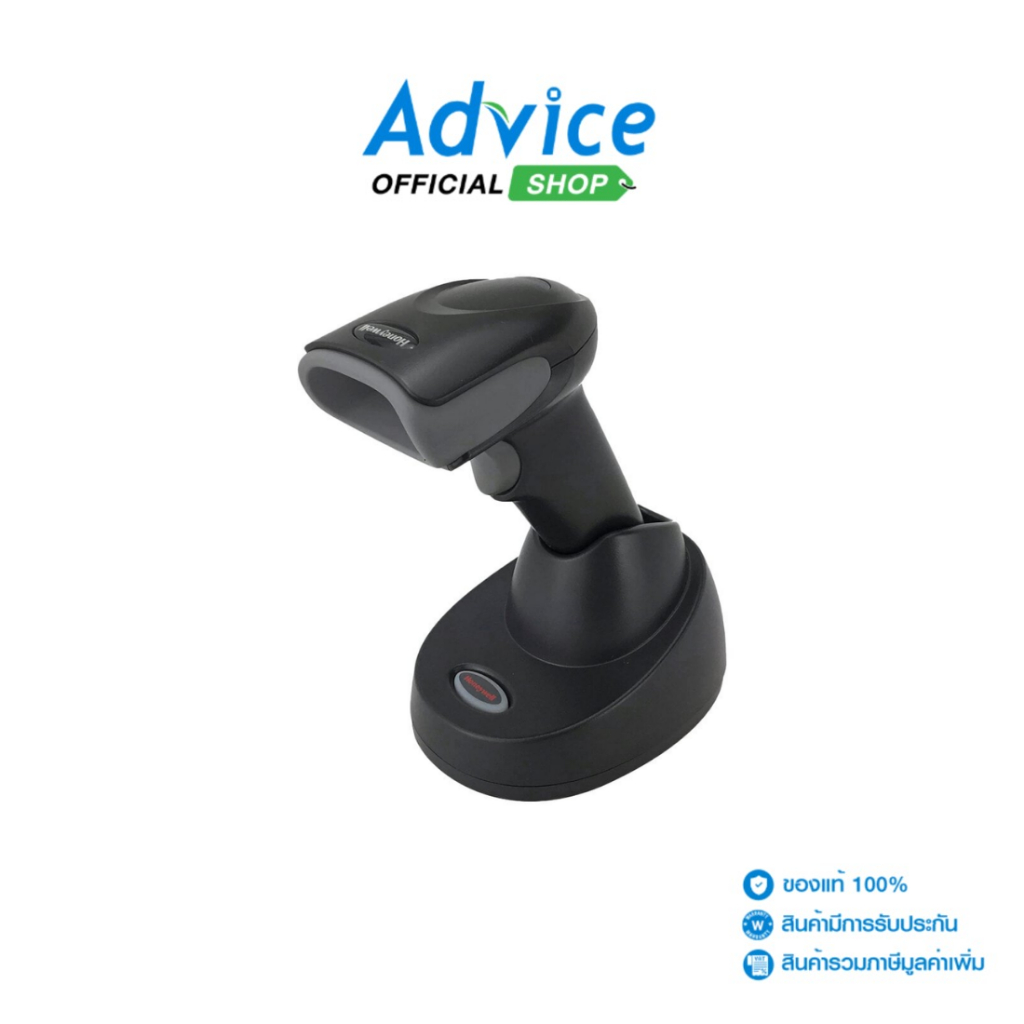

HONEYWELL Barcode Scanner 1472G - A0170346

Brand : HONEYWELL Model : 1472G Support Barcode Type : 1D, 2D Interface : WIRELESS Radio/Range : 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2 30 m (98 ft) line of sight with Honeywell charger/communication base Light Source : Illumination : Warm white LED (CCT 2700K) Aimer : Red dot LED, 624nm Light Levels : 0 to 100,000 lux (9,290 foot-candles) Sensor Resolution : 1040 x 720 pixel array Scan Rate : Motion Tolerance : 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus Scan Angle : Horizontal : 39.2° nominal Vertical : 27.4° nominal Roll, Pitch, Skew : ±180°, ±65°, ±70° Field of View : N/A Depth of Field : 5 mil Code 39 : 20 mm - 205 mm (0.8 in - 8.1 in) 13 mil UPC : 18 mm - 400 mm (0.7 in - 15.8 in) 6.7 mil PDF417 : 15 mm - 185 mm (0.6 in - 7.3 in) 10 mil DM** : 10 mm - 165 mm (0.4 in - 6.5 in) 20 mil QR : 5 mm - 325 mm (0.2 in - 12.8 in) PCS : 15% Support Symbol : 1D : Code 39, code 128, code 93, EAN,UPC, code 11, code 32 Pharmaceutical,codabar, China Post, GS1 databar 2D : Aztec, Data Matrix, QR/Micro QR code,Maxicode, Chinese sensible (Han Xin)code, postal code, PDF417, DotCode, Digital Watermarking: Digimarc OCR : OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface Note : Decode capabilities dependent on configuration. Trigger Mode : Handheld, Continuous Sensor : User Indicators : Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Charge Status Indicator Power Supply : Battery : 2400 mAh Li-ion minimum Number of Scans : Up to 50,000 scans per charge Expected Duration of Operatio : 14 hours Expected Charge Time : 4.5 hours Standby Power : Charger/Communication Base: 0.5 W (0.1A @ 5V) Enviroment : Operating Temperature: Scanner: - Charging: 5°C to 40°C (41°F to 104°F) - Non-Charging: 0°C to 50°C (23°F to 122°F) Charger/Communication Base: - Charging: 5°C to 40°C (41°F to 104°F) - Non-Charging: 0°C to 50°C (32°F to 122°F) Storage Temperature: Scanner: - For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) - For storage up to 1 year: -20°C to 20°C (-4°F to 68°F) Charger/Communication Base: -40°C to 70°C (-40°F to 158°F) Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air Humidity: 0% to 95% relative humidity, non-condensing Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete Environmental Sealing: IP42 Special Features : Host System Interfaces : USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485) Dimensions Scanner (L x W x H) : 62 mm x 173 mm x 82 mm Charger/Communication Base : 132 mm x 102 mm x 81 mm Weight Scanner : 210 g Charger/Communication Base : 179 g Package Contents : N/A Dimension (W x D x H) : 6.20 x 8.20 x 17.30 cm Net Weight : 0.21 Package Dimension (W x D x H) : 14.50 x 22.50 x 13.00 cm Gross Weight : 0.63 Volume : 4,241.25 ประกัน : 1 ปี
