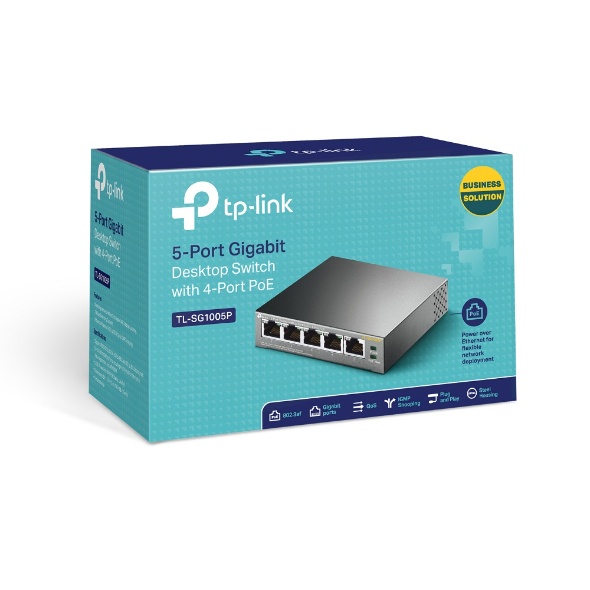

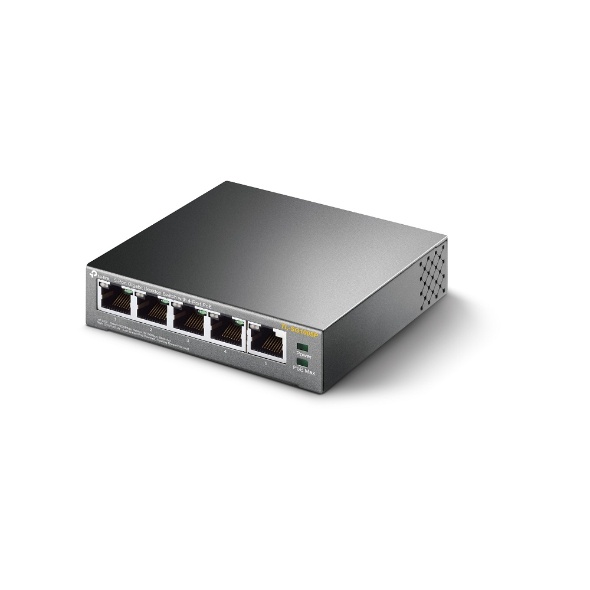

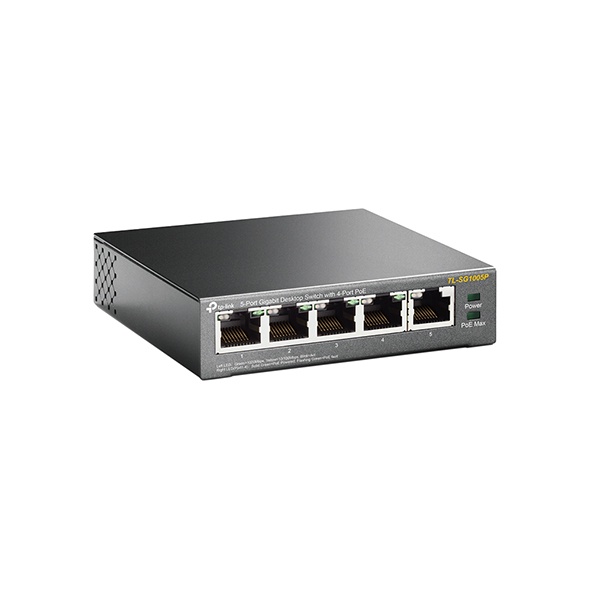

TP-Link TL-SG1005P (TL-SG1005P) 5G Desktop with 4G PoE+ 65W Switch

HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity • Fanless External Power Supply • External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate • 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Mac Address Table • 2K Jumbo Frame • 16 KB Switching Capacity • 10 Gbps Dimensions ( W x D x H ) • 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.29 W (220/50 Hz. no PD connected) • 74.24 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 14.63 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping Transfer Method • Store-And-Forward OTHERS Certification • FCC, CE, RoHS Package Contents • TL-SG1005P • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
