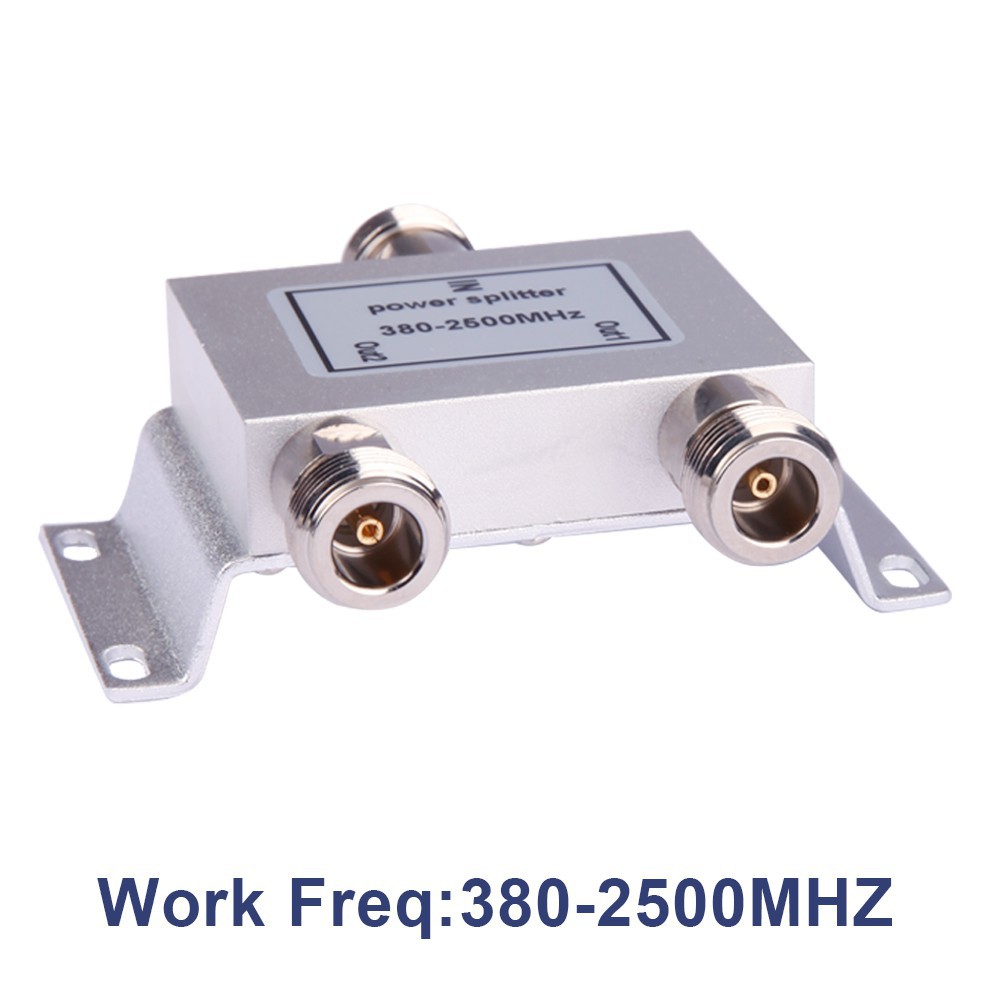

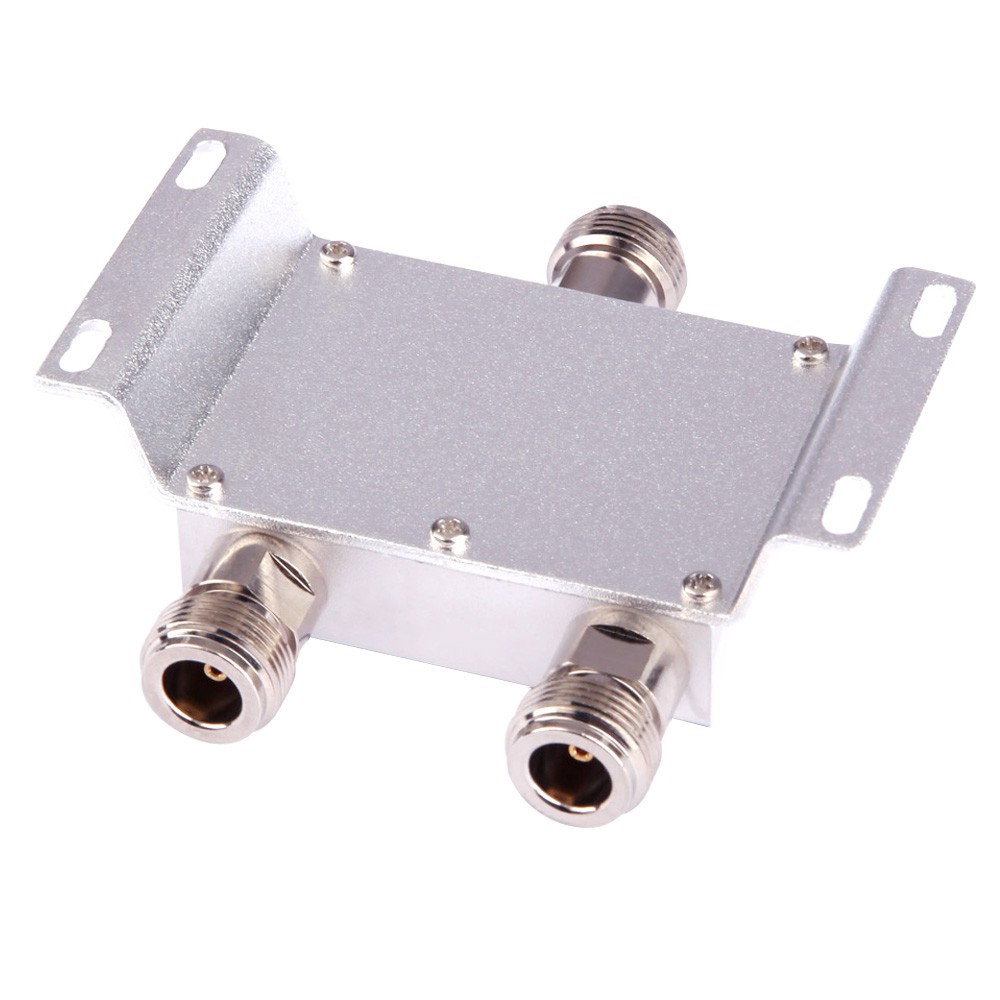

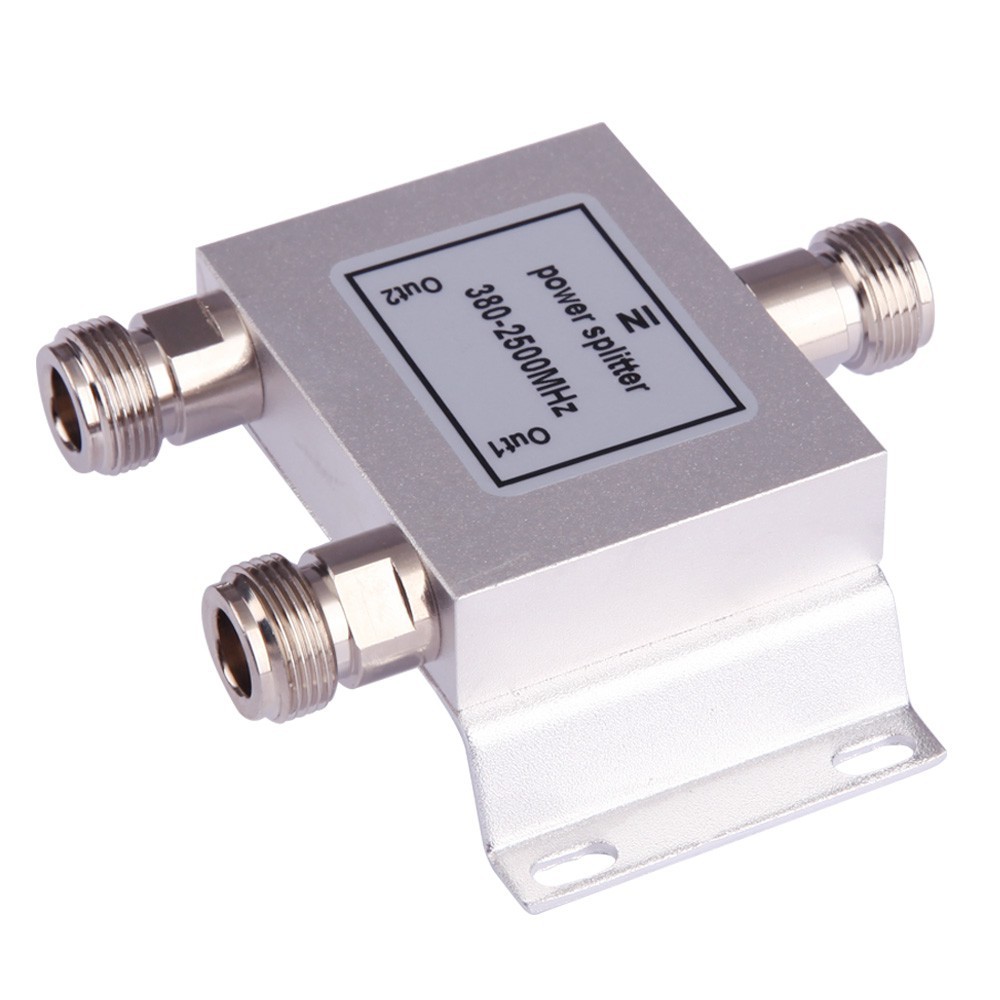

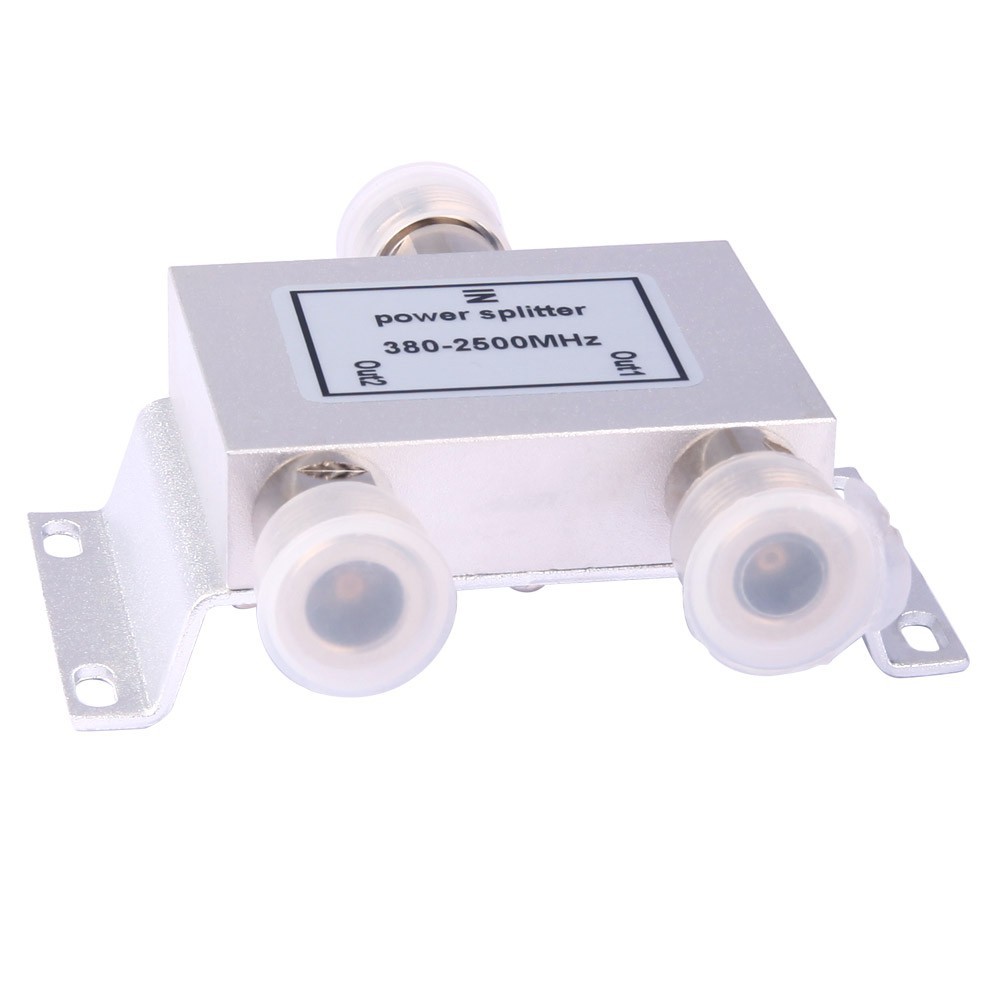

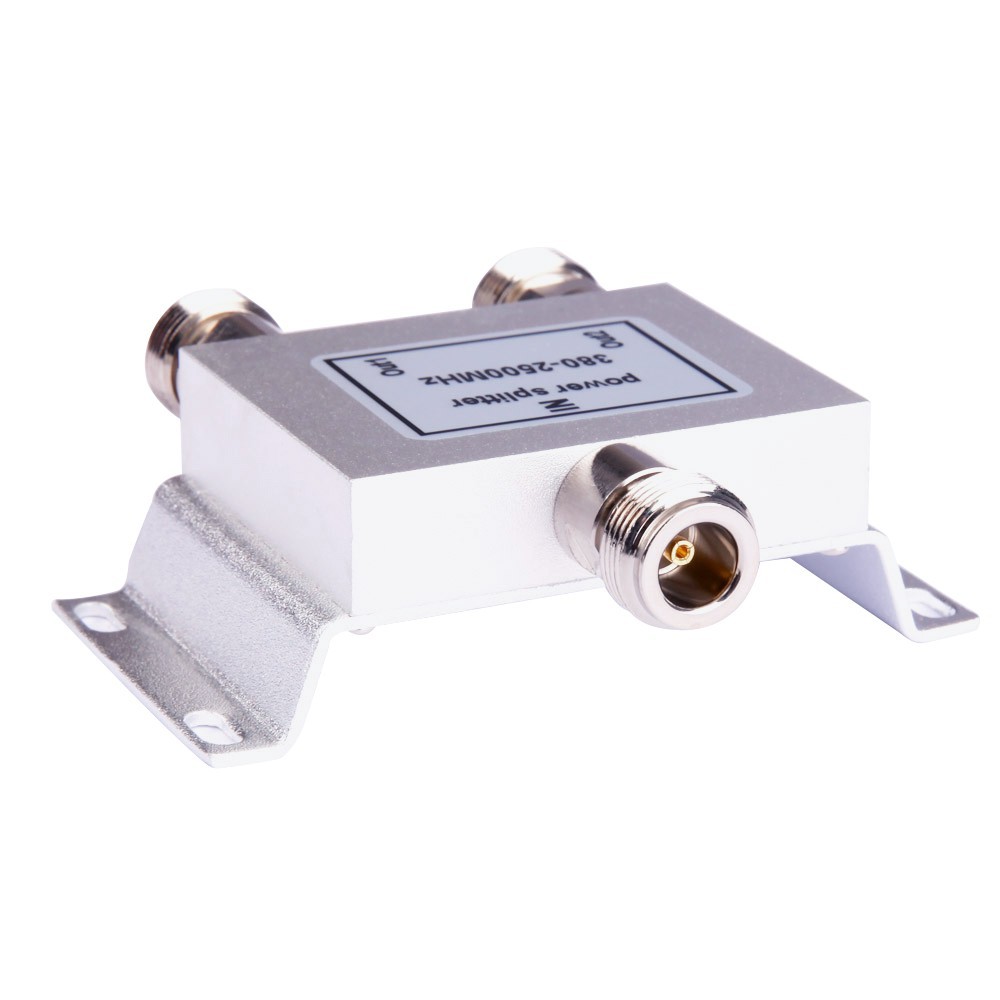

RF Splitter 2 Way Power Splitter 380-2500 MHz Signal Booster Divider N Female ราคา ถูกที่สุด ดีลบีเคเค
Product introduction
The power splitter is called a power divider. It is a device that divides the energy of one input signal into two or more equal or unequal power outputs. It can also synthesize multiple signal energy into one output. This can also be called Combiner.
A certain degree of isolation should be ensured between the output ports of a power divider. The power dividers are usually divided 2Way (one input and two outputs) ; 3Way (one input and three outputs) ;4Way (one input and four outputs)according to the output.
The main technical parameters of the power divider are power loss (including insertion loss, distribution loss and reflection loss), voltage standing wave ratio of each port, isolation between power distribution ports, amplitude balance degree, phase balance degree, power capacity and frequency band. Width and so on.
Specification:
Model No. OS-S101
Item Microstrip 2Way Splitter
Output One Input Two Output
Operating Frequency 800-2500MHz
Power Capacity 50W
Ripple ≤0.3dB
Impedance 50Ω/N
Isolation ≥20 dB
Insertion Loss ≤3.4dB（Real）
VSWR ≤1.3
Operating temp. -25 – +55
Connector Type N female
Materials Alloy
Product Size 90*90*30cm
Product Weight 155g
Package Include :
1 X Microstrip 2Way Splitter
